A distributed real-time communication platform for services using ASP.NET Core and SignalR — reliable bidirectional messaging between connected "hooks."
Enable seamless inter-service communication, event routing, and real-time dashboards with minimal configuration.
Built on ASP.NET Core SignalR, HookHub enables robust WebSocket and Long Polling support with automatic reconnection and keep-alive mechanisms.
Multiple services (Hooks) connect to a central Hub for bidirectional communication and real-time message broadcasting.
Includes REST API endpoints for hook management and a web UI to view active connections and send test messages.
Enable microservices to communicate in real-time without direct dependencies.
// Example: Send message from one hook to another
await hubConnection.InvokeAsync("SendToHook", "targetHookId", message);Route events across distributed systems for processing and notifications.
// Broadcast event to all connected hooks
await hubConnection.InvokeAsync("BroadcastMessage", eventData);Update dashboards instantly as data flows through your system.
// Receive updates in real-time
hubConnection.On("ReceiveMessage", (message) => {
updateDashboard(message);
});Proxy HTTP requests to connected hooks for seamless API integration.
# Get hook status
GET /Proxy/HookClientName/http://localhost:5200/hook/index
# Post data to hook
POST /Proxy/HookClientName/http://localhost:5200/api/data
Content-Type: application/json
{
"key": "value"

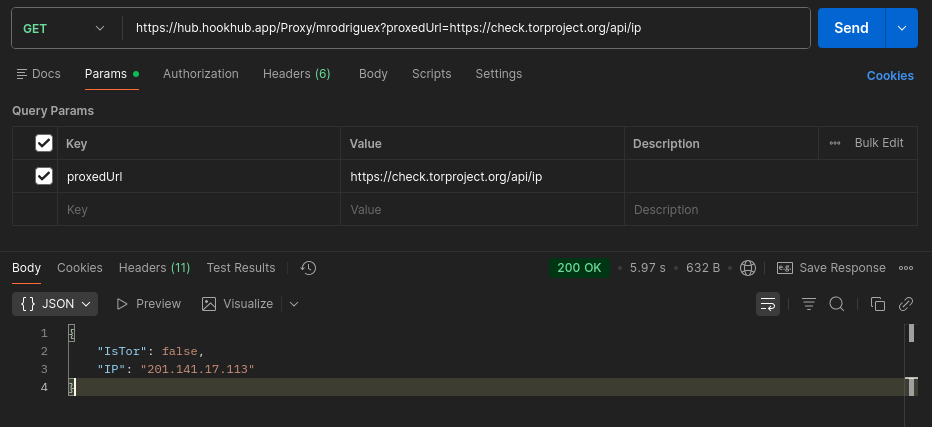

}Test HookHub's proxy functionality directly with Postman or any HTTP client. This example demonstrates how to proxy requests through the live HookHub instance.
GET https://hub.hookhub.app/Proxy/mrodriguex?proxedUrl=https://check.torproject.org/api/ip

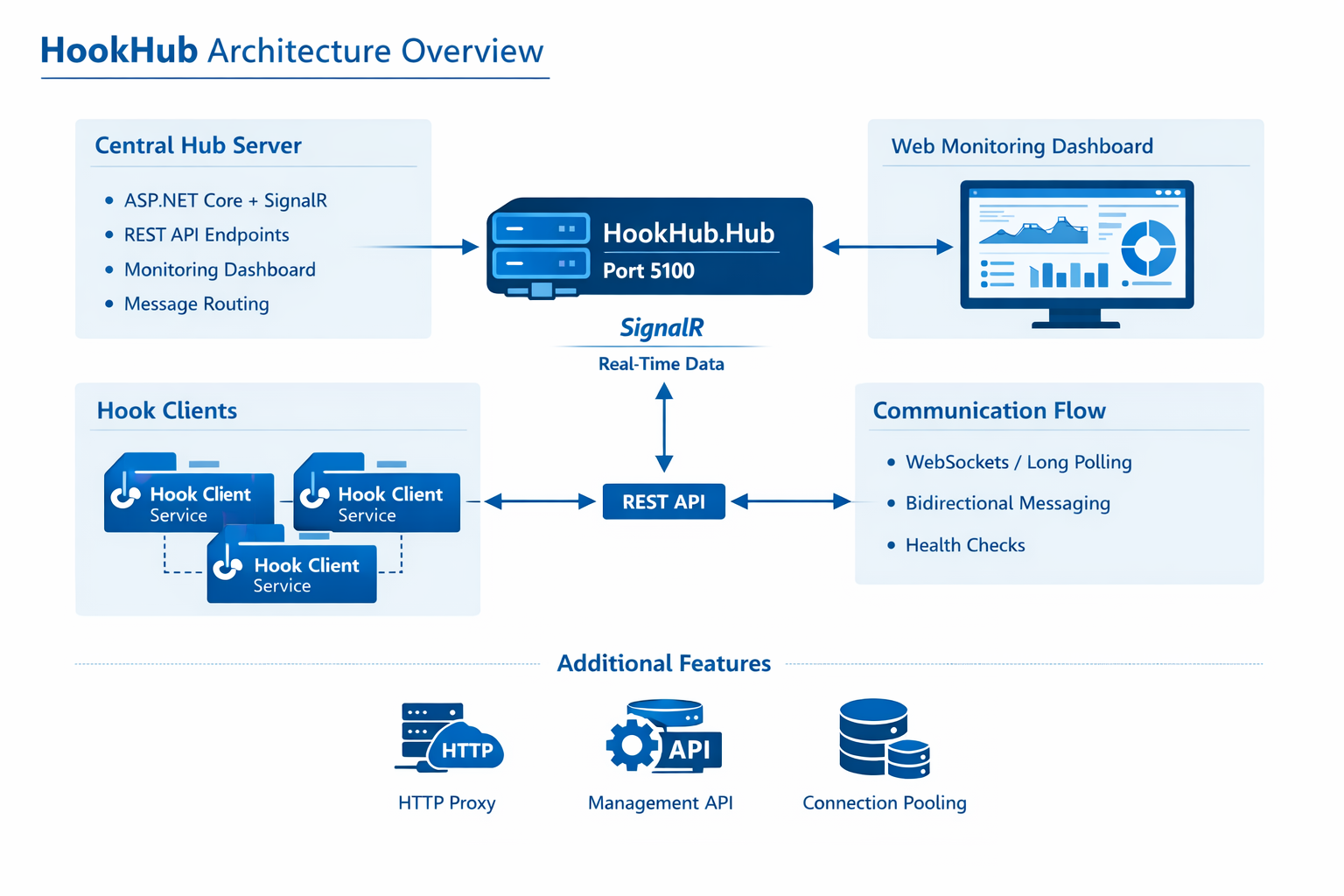

HookHub consists of a central Hub server that maintains persistent connections with multiple Hook clients. Messages are routed bidirectionally, ensuring reliable communication.
Follow these simple steps to get HookHub running on your system and start building real-time distributed applications.
Before you begin, ensure you have:
Open your terminal and clone the HookHub repository from GitHub.
git clone https://github.com/mrodriguex/hookhub.git
cd hookhubThis downloads all the source code and project files to your local machine.
Install all required NuGet packages and dependencies.
dotnet restoreThis may take a minute as it downloads all the necessary libraries from NuGet.
Compile the source code to ensure everything is working correctly.
dotnet buildIf successful, you'll see "Build succeeded" in your terminal.
Start the central Hub server that will manage all connections.
dotnet run --project HookHub.HubThe server will start on http://localhost:5100. Keep this terminal running.
In a new terminal, start a hook client to test the connection.
# In a new terminal window
cd hookhub
dotnet run --project HookHub.HookThis starts a sample hook service on port 5200 that connects to the hub.

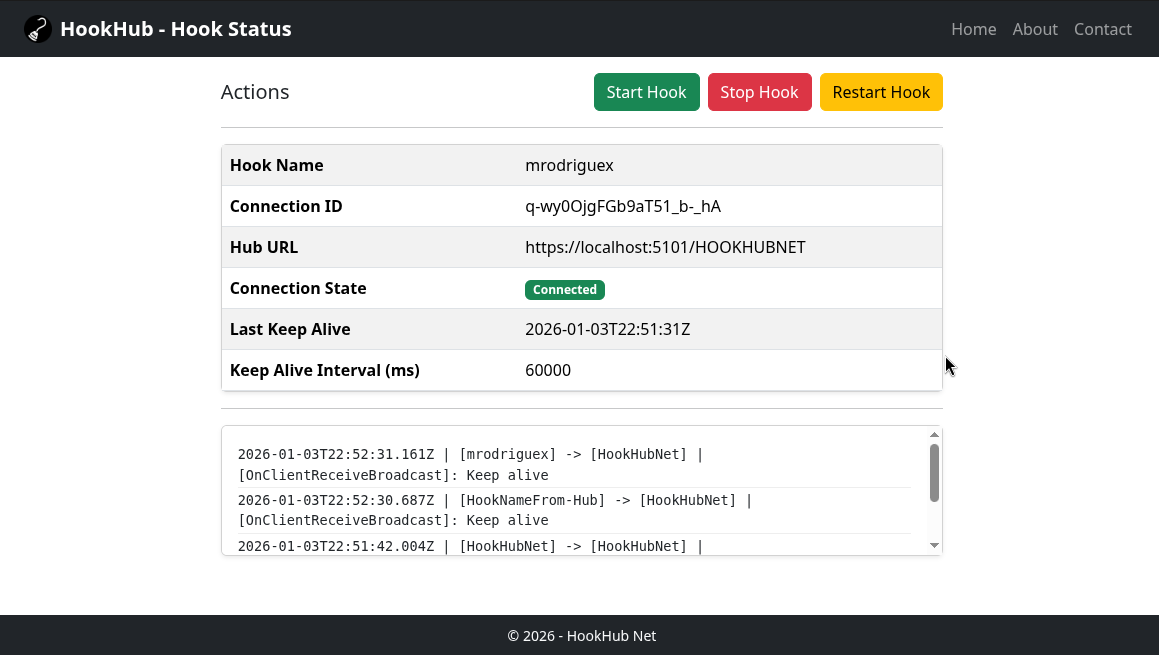

Open your web browser and navigate to the management dashboard.
http://localhost:5100/hub/index

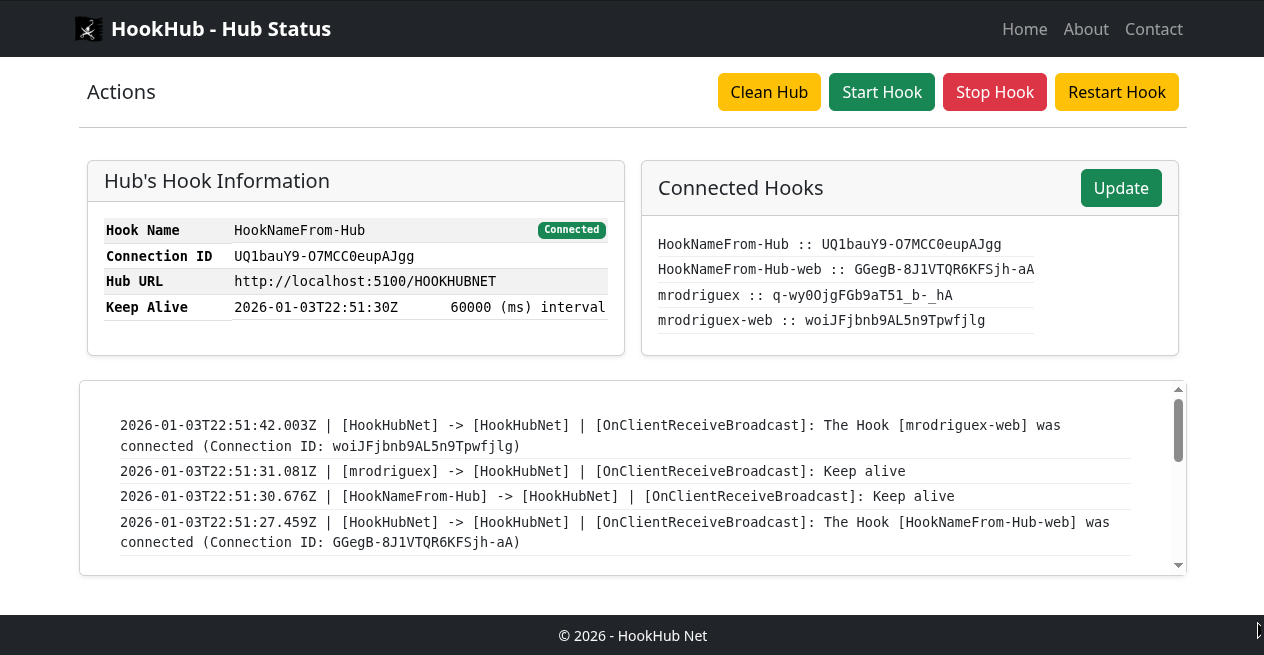

Here you can monitor connected hooks, send test messages, and view connection status.
Try the interactive testing page to see messages flow between hooks.
http://localhost:5100/indexTesting.html
This page shows multiple instances for testing bidirectional messaging.
Now that HookHub is running, explore the code, customize configurations, or start building your own hooks!
